Tycom Power TP-SW5G-VERSABT | 5 Port Unmanaged GigE PoE Network Switch, 44-58V WireTerm Input, 1x 90W 802.3bt PoE + 3x 802.3at 30W PoE + 1x 24V 12W Passive PoE Port
Product Highlights
Model#: TP-SW5G-VERSABT
Sku: IT4640
MSRP: $329.99
In Stock
Your Price: $329.99
MODEL: TP-SW5G-VERSABT

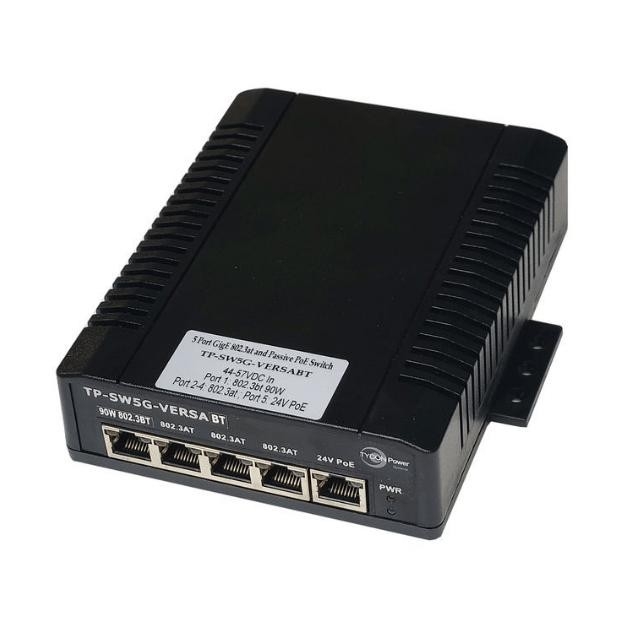

The TP-SW5G-VERSABT Power over Ethernet (PoE) 5-Port Gigabit switch offered by Tycon® is a fully automatic, high-speed Layer 2 Ethernet switch designed with multiple function ports to meet various power needs. Port 1 is a powerful 90W 4-pair 802.3bt PoE port, while Ports 2, 3, and 4 are 48V 30W 802.3at compatible ports. Port 5, on the other hand, is a 24V 12W Passive PoE port. This diverse configuration allows customers to power multiple PoE devices with different power requirements using a single switch. The switch requires a 44-57VDC (4A) power input, ensuring it can handle demanding power needs.
Moreover, the units are compatible with Category 5 or higher Ethernet cables, providing robust and reliable data transmission. The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection, which enhances durability and protects against electrical noise. Additionally, all Ethernet wires feature 15kV surge protection, safeguarding your devices from electrical surges. The switch is also conformal coated, offering protection against moisture and making it suitable for outdoor and industrial applications. Its wide operating temperature range ensures reliable performance in various environmental conditions.
In summary, the TP-SW5G-VERSABT PoE 5-Port Gigabit switch from Tycon® is an ideal solution for powering a variety of PoE devices, including cameras, access points, and sensors. Its robust design and versatile features make it perfect for both commercial and industrial environments. With this switch, you can ensure reliable connectivity and efficient power delivery for all your networking needs. Explore the full range of Tycon® PoE solutions to find the perfect fit for your specific requirements and experience the superior performance and reliability that this switch brings to your network infrastructure.
Features
- PoE Switch
- One (90W) 802.3bt PoE, Three (30W) 802.3at PoE and one (12W) 24V Passive PoE port
- Gigabit Compatible
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation
- Din Rail Adapters Included
Applications
- Power different PoE devices from a single 48V supply
- Cameras and Wireless Radios
- PoE Lighting Applications
Specifications TP-SW5G-VERSABT
| Ports | Port 1: 90W 4Pair 801.3bt PoE ; 1,2,4,5( V+), 3,6,7,8 (V-) Port 2,3,4: 48V 30W 802.3at Mode B Port 5: 24V 12W Passive PoE ; 4,5 (V+), 7,8 (V-) |
| Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation |
| Connections | Shielded RJ45, Grounded to FG connection |
| Input | Vin 44VDC to 57VDC on Wire Terminal |
| LED’s | Right Hand LED: Gigabit Link (Green On), Activity (Green Blinking) 10/100Mb/s Link (Yellow On), Activity (Yellow Blinking) Left Hand LED: PoE Power ON (Yellow On) |
| PoE Protections | Over Temperature, Over Current, Short Circuit |
| Surge Protection | IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) |
| Self Consumption | < 3 Watt Typical |
| Switch Technology | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x(full-duplex), Back Pressure(half-duplex) |
| Data Transmission Rate | 1488000pps , 148800pps, 14880pps |
| Address Table | 1K MAC, self-learning |
| Operating Temp | -30 to +70°C (-22 to 158°F) |
| Operating Humidity (RH) | 5% - 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 159 x 118 x 40mm (6.3 x 4.6 x 1.6”) |
| Weight | 318g (11oz) |
